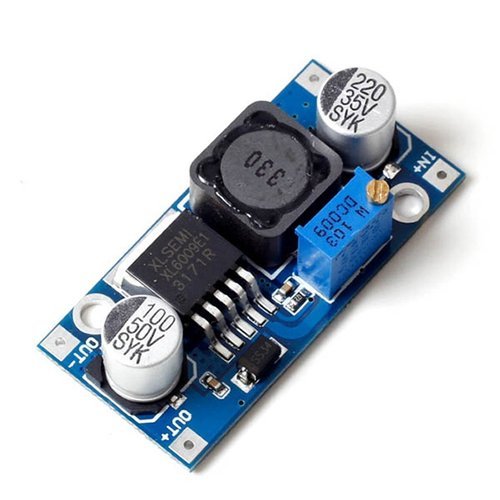

XL6009 Boost Step-up Module with display 4.5-32V to 5V-52V
This is a XL6009 Boost Step-up Module with display 4.5-32V to 5V-52V boost converter step-up power module with high-precision potentiometer, and it uses XL6009E1 with the second generation of high-frequency switching technology as core chip, so that its performance is much higher than the first-generation technology LM2577. With high switching frequency of 400KHz, even small-capacity filter capacitors can bring with very nice results, while the ripple is less and the is smaller.
Specifications of XL6009 Boost Step-up Module with display 4.5-32V to 5V-52V
- Wide input voltage 3V ~ 32V (optimum operating voltage range is 5 ~ 32V)
- Wide output voltage 5V ~ 35V
- Built in 4A efficient MOSFET switch, so that the efficiency up to 94% (LM2577 current is only 3A)
- Ultra-high switching frequency 400KHz, you can use a small-capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller. (LM2577 frequency only 50KHz)
Features:
- Model: XL6009 boost module
- Properties: non-isolated step-up (BOOST)
- Rectification: Non-Synchronous Rectification
- Input range: 3V ~ 32V
- Output range: 5V ~ 35V
- Input Current: 4A (max), empty load current 18mA (5V input, 8V output, empty load current 18mA, the higher the voltage, the greater the empty load current.)
- Conversion efficiency: <94% (the greater the pressure, the lower the efficiency)
- Switching Frequency: 400KHz
- Output ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
- Load regulation: ± 0.5%
- Voltage regulation: ± 0.5%
- Working temperature: -40 ℃ ~ +85 ℃
- Dimensions: 43mm * 21mm * 14mm (L * W * H)
