For measuring the rotational speed of the object, angle, acceleration, and length measurements.

Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machine, steel fixed length cutting controller, civil measured height human scale, college game with robots.

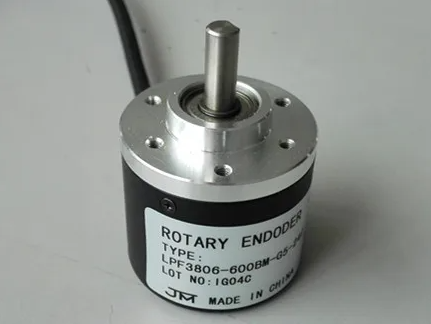

AB two-phase incremental optical rotary encoder 600 pulses, NPN open collector output . (We also have 360 pulses and 600 pulses in stock, including NPN open collector output and voltage output two kinds of output. If you need please leave message for which one, or we will send by default 600 pulses and NPN open collector output ).

Standard with 1.5 m cable

Performance: 400 pulses / rev.

Operating voltage: DC5-24V

Maximum mechanical speed: 5000 rev / min

The electrical response frequency: 20K / sec

Integrated speed: 2000 rev / min

Size: Encoder body size: φ38mm; shaft φ6 × 13mm; axis platform: High 5mm, φ20mm; fixing holes for: M3 screws

Three mounting holes on the circle 30, and the other three mounting holes on the 28 circle ; side qualify.

Output:

AB rectangular two-phase quadrature pulse output circuit output NPN open collector output type, this output type can and with internal pull-up resistor connected directly to the microcontroller or PLC, such as 51 single or Mitsubishi PLC (PLC’s input to switch connected to 0V should work), Note: If the encoder is not connected to the device can not be directly oscilloscope oscilloscope (open collector output when there is no pull-up resistor, there is no voltage output) to oscilloscope please plus two pull-up resistor AB two-phaseoutput;

How to connection:

Green(绿） = A phase

White（白） = B phase

Red（红） = VCC positive supply

Black（黑） = GND
