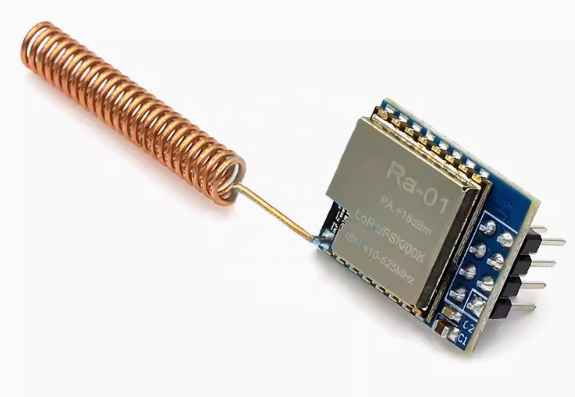

SX1278 LORA spread spectrum wireless module/433MHZ wireless serial port/UART interface/ RA-01

SX1278 LORA spread spectrum wireless module/433MHZ wireless serial port/UART interface/ RA-01

• Antenna Connection: Solderable Pad
• RF Transceiver: Semtech SX1268
• Operating Voltage: 2.5 ~ 3.7VDC
• Operating Current (Max): ~140mA
• Receive Mode Current (Min): ~4.6mA
• Standby Mode Current: ~1.6mA
• Comms Interface: SPI
• Frequency Range: 410 – 525MHz
• Receive Sensitivity: As low as -148dBm
• Max Transmit Power: +22dBm
• Bit Rate: Programmable up to 300kbps
• Modulation Types: FSK, GFSK, MSK, GMSK, LoRa and OOK
• Notable Features: Excellent blocking immunity and additional shielding
• Operating Temperature: -40°C to +85°C
