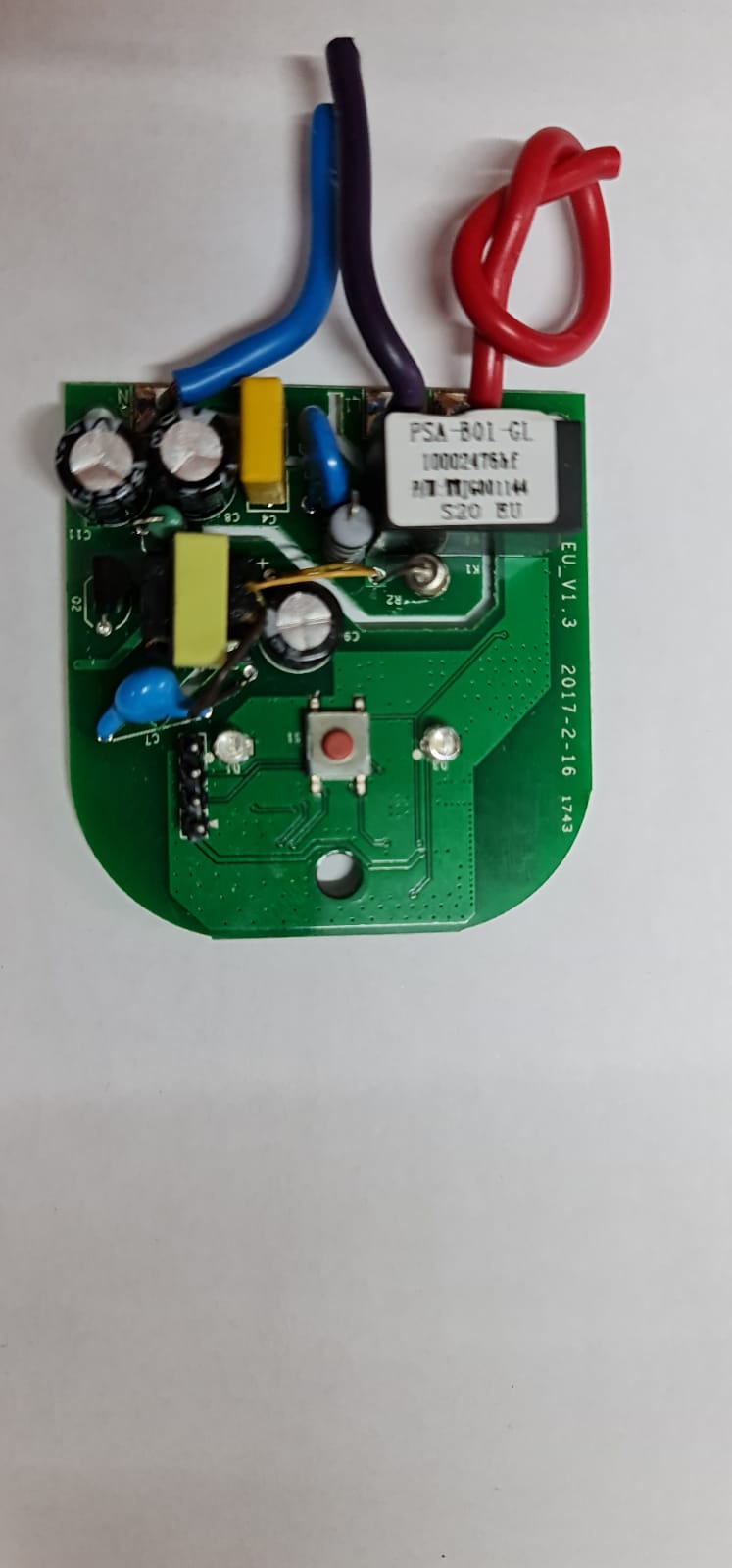

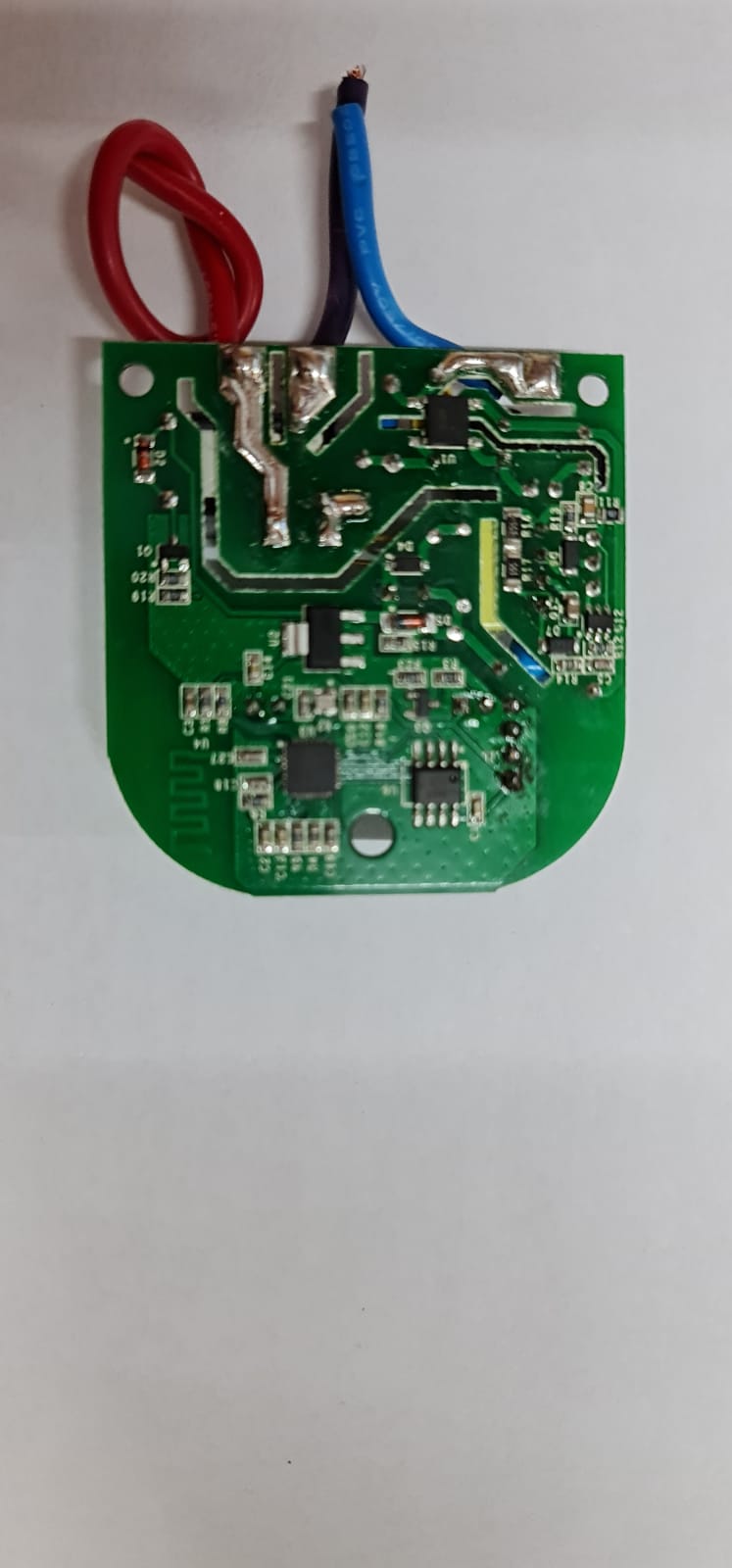

Sonoff S20 PCB Only Firmware Tasmota Basic 230Vac

Sonoff S20 PCB Only Firmware Tasmota Basic 230Vac

Simply connect the Sonoff S20 PCB Only Firmware Tasmota Basic 230Vac

slider to a home Wi-Fi network and within seconds you can control appliances from anywhere in the world.

Examples of most common uses:

– time switching – wherever you need to switch an appliance regularly –

the Sonoff S20 gives you really great timing options (see below).

Such drawers are very popular, for example, in aquarists who need regular lighting, filtering, heating and the like. In addition, the Sonoff S20 allows you to use external information (such as sunset / sunrise, weather forecast) and to switch the appliance on / off based on this data.
– remote control – are situations when the remote switching of the appliance is almost imperative. For example, heating on a cottage. There is nothing easier than plugging the heater into a smart socket and switching on the heater remotely 2 hours before going to the cottage.

Smart scenes
– The Sonoff S20 can be switched on in groups (when one is turned on, all others are turned on automatically)
– You can switch on the socket based on the values ??(such as temperature) measured by other Sonoff modules (Sonoff SC, Sonoff TH10 / 16). In practice, it can look like this: The Sonoff TH10 measures the temperature drop below 17oC and switches on the room heating, the Sonoff S20 monitors the room temperature via TH10, and if it drops below 15oC, it switches to another heater.

In addition to the remote control, the Sonoff S20 offers many timing options – for example:

shut down every hour for 5 minutes
Join each day for 2 hours
shut down every Tuesday at 6:00 and shut down at 9:00
switch on if some Sonoff light, switch, other socket Sonoff S20 …
turn off in 12 minutes
Get started if it starts snowing (via www.ifttt.com)
switch off if Sonoff SC measures the air quality in the room and shuts off until it improves

Specifications:

The socket combines an EU type E / F hybrid plug (English version) and a type F drawer (so-called German type, “Schuko”) to achieve maximum versatility of use within the European Union, thereby reducing production costs. From a safety point of view, this combination does not pose any risk as older round plugs without side contacts do not physically fit into this socket. All other plugs currently supplied with the appliance will be grounded properly due to side earthing contacts
Voltage: 90 ~ 250V max. 10A / 2200W
Wifi standart: 2.4GHz 802.11 b / g / n
Wifi Frequency: 2.412-2.462GHz
Security Type: WEP / TKIP / AES / WPA-PSK / WPA2-PSK
Operating temperature: 0oC-40oC
Certification: CE / RoHS / FCC
Weight: 165 g
Dimensions: 110 x 62 x 52.5 mm
Material: ABS V0 Resistant to combustion
WARNING: The power outlet disconnects the contact on the right. The standard ČSN 33 2000-4-46 allows the connection of the working conductor on both sides in the fixed sockets, however, it is the standard in the Czech Republic to connect the “phase” to the left. In this case, this means that even after turning off this socket, the left-hand socket will still be unplugged. For this reason, it is not possible to use similar sockets to safely disconnect the appliance. In case of any manipulation with the appliance, which could cause electric shock, physically disconnect the appliance from the socket
