Round Lucky Rotary-Kit CD4017/NE555

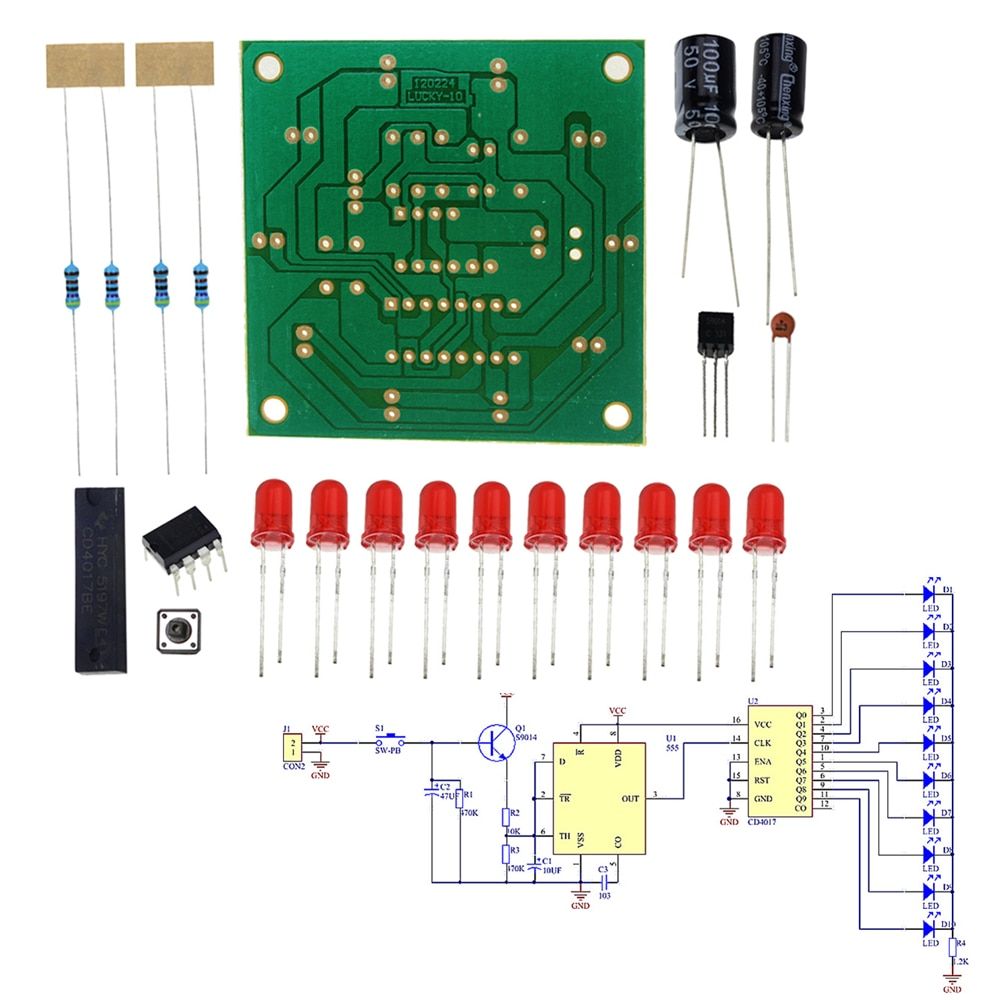

Round Lucky Rotary-Kit CD4017/NE555 Electronic wheel of fortune -10 LED in a circle, After you click the button, each LED luminous turn in order, flow speed getting slower and slower, and finally stopped in a move not only the LED.
If the LED lights up with the players last forecast of the same, it means “winning”.
Lucky rotary suite: The lucky rotary suite is a powerful tool for electronic enthusiasts.
Lucky rotary suite is a complete kit that provides a beginner with basic tools for all ages.
voltage regulator: This voltage regulator is suitable for the beginners who want to make their own power supplies. Meanwhile, the voltage regulator is made of high quality abs material, which has strong toughness and good impact resistance.
Description:
– Power Supply Voltage: 3-5V
– Dimension: Approx. 58x58mm/ 2.28×2.28 inch
– 2pcs 1.2K ohm Color Ring Resistor
– 2pcs 470K ohm Color Ring Resistor
– 1pcs 0.01uF Ceramic Capacitor
Specification:
– 47uF Electrolytic Capacitor
– 100uF Electrolytic Capacitor
– F5 Red Light LED
– 10pcs 9014 Triode
– Tact Switch
– IC NE555
– IC CD4017
Package Includes:
1 Piece of Electronic Lucky Wheel Module
1 Soldering pads are not easy to fall off several times
( Referring to bend under the circumstances which led to the non- human )
2 . Less prone to self- change bending , poor plate will change with time and the environment while bending .
3 More stable and reliable impedance
4 Plates and some stability tolerance parameters , A performance was very tough material , which is of interest in some other sheet relatively cheap price.
Function play: Wheel of Fortune is the first to predict when the disc stops rotating , which in the end will stop location tools . Estimated number is also used as games, electronic dice , lottery machines. Electronic Wheel of Fortune is electronically fulfilled the same function , the LED package 10 is configured to form a circle , when you click the button , the sequence of turns each LED light, flowing faster and slower , and finally stopped at a just the LED is no longer moving . Finally, the LED lights up when the player the same prediction , said ” winning” .
