MQ5 Gas Detection Module-Natural gas, LPG.

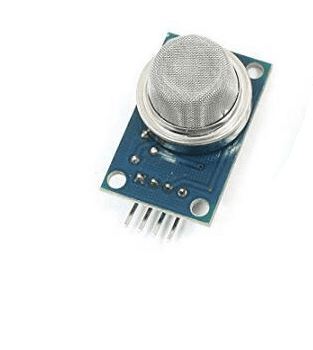

MQ5 Gas Detection Module

MQ5 Gas Detection Module It is suitable for detecting H2, LPG, CH4, CO, Alcohol. Due to its high sensitivity and fast response time, measurements can be taken as soon as possible.

Feature:
ICSG017A is a “Gas Sensor” module.
Size: 32mm X22mm X30mm length * width * height;
The main chip: LM393, MQ-x gas sensing probe;
Working voltage: DC 5V;
With signal output indicator light;
The dual signal output (analog output and TTL output);
The analog output and increased with the increase of concentration, the higher the concentration higher voltage;
Has a very high sensitivity to sulfide, benzene vapor, smoke and other harmful gases;
With a long service life and reliable stability;
Quick response and recovery characteristics;
With mounting holes, easy mounting;
The probe can be plug design, convenient test;

Application:
For harmful gas family, environment detection device, is suitable for the detection of the ammonia, aromatic compounds, sulfide, benzene vapor, smoke and other harmful gas, gas sensitive element concentration range: 10 to 1000ppm provides reference cases.
