MQ135 Gas Detection Module-Quality (CO, Ammonia, Benzene, Alcohol, smoke)

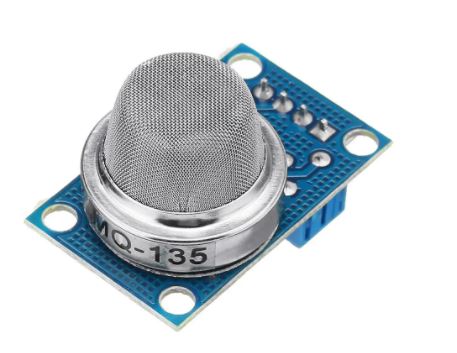

MQ135 Gas Detection Module

MQ135 Gas Detection Module can detect gases like Ammonia (NH3), sulfur (S), Benzene (C6H6), CO2, and other harmful gases and smoke. Similar to other MQ series gas sensor, this sensor also has a digital and analog output pin. … The MQ135 air quality sensor module operates at 5V and consumes around 150mA

Feature:
ICSG017A is a “Gas Sensor” module.
Size: 32mm X22mm X30mm length * width * height;
The main chip: LM393, MQ-x gas sensing probe;
Working voltage: DC 5V;
With signal output indicator light;
The dual signal output (analog output and TTL output);
The analog output and increased with the increase of concentration, the higher the concentration higher voltage;
Has a very high sensitivity to sulfide, benzene vapor, smoke and other harmful gases;
With a long service life and reliable stability;
Quick response and recovery characteristics;
With mounting holes, easy mounting;
The probe can be plug design, convenient test;
