Digital 12V W1209 Thermostat Temperature Controller Switch Sensor 50-110°C +Case

Temperature control range: -50~110°C
Resolution: -9.9~99.9 when 0.1 °C Other temperature range 1 °C
Temperature measurement accuracy: 0.1 °C
Control accuracy: 0.1 °C
Hysteresis accuracy: 0.1 °C
Refresh rate: 0.5 S
Display type: 0.28 inch three digital tube
Input power: DC 12V
Measurement input: NTC (10K 0.5%) Waterproof sensor Line length 300mm
Output: 1 relay output, 5A 250VAC, 20A 16VAC
Environmental requirements: -10~60°C Humidity 20%-85%
Size: 47.5*18.5*31.5mm
Static current: ≤ 10MA, attract current ≤ 65MA

How to use:
Connect the power supply and the load, you can supply to the controller,
Is displayed as a measured temperature,
Press the SET button, the display flashes the temperature,
Press – to set the desired temperature,
After setting press SET to confirm return,
The controller automatically performs the relay by setting off!
Lights, LED status descriptions:
Indicator: Off The relay is switched off, Always indicate the relay is closed.
LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display — as high temperature protection.

Package Included:

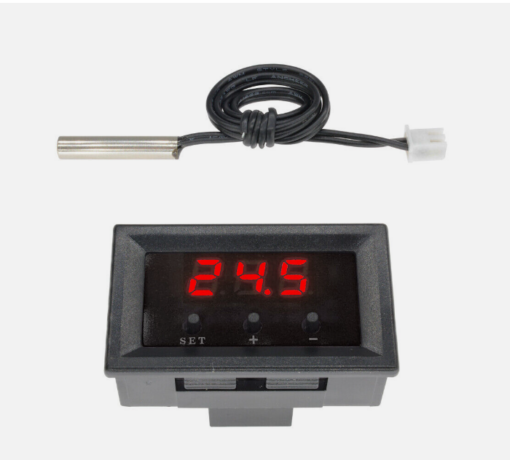

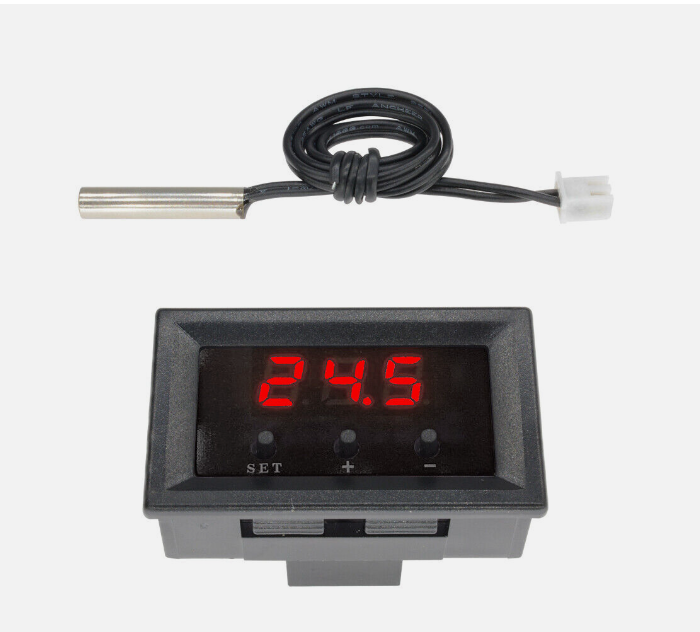

1PC 50-110°C W1209 12V Digital Thermostat Temperature Controller Switch Sensor+Case
