4×4 Keypad

4×4 Keypad

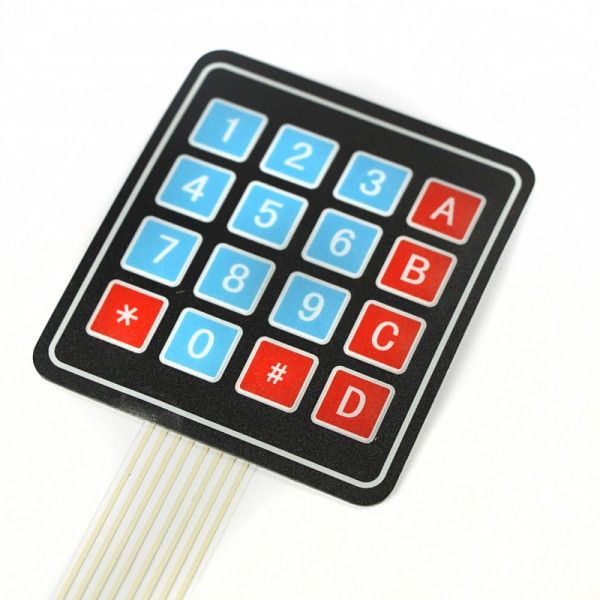

• Use this awesome 16 key, 4×4, membrane keypad for all your Arduino input needs! It is easy to use, flexible, light-weight and looks professional.
• Matrix Keyboard is a kind of keyboard whose layout is like a matrix and it’s used as a peripheral equipment of MCU. The structure of matrix keyboard is more complex than that of other common keyboards, and the condition is similar to that of the recognition. The column line is connected with the anode of the power supply through resistors and let the I/O port of MCU connected with the row line work as an output terminal. The I/O port connected with the column line will be the input.

  Because during the circuit design, there is much more need of external input. It will consume much IO source if we control a button separately, we have the matrix keyboard. The most common types are 4*4 and 8*8. Among them, the type 4*4 is even more common than 8*8.

  On a keyboard, if there are too many buttons, we will arrange them into the form of matrix to decrease the using of the I/O port. In the internal structure of the matrix keyboard, each horizontal line and each vertical line are not connected directly at the intersection, but at the button. Therefore, a port (eg. P1) can form 4*4=16 buttons, and the number is twice as much as that of the button whose port cable is connected with keyboard.
  The larger the number of the wires, the clearer the difference. For example, if there is an additional wire, we can get a keyboard with 20 buttons; using the port cable directly, we can get one additional key (key 9). So if there is much need of buttons, it is wise to use matrix analysis.

  membrane keyboard Membrane keypad is an application case of membrane switch with arrayed buttons. Membrane keypad is a kind of currently widespread operation system in the world that has the advantages of both practicality and beauty. It is composed of panel, upper circuit, isolation layer and bottom circuit. Due to these advantages: nice appearance, modern design, tiny in size, light weight, strong sealing (moisture proof, dust proof, oil pollution prevention, acid and alkali resistance), quake resistance and long service life, etc., it is commonly used in these fields, like medical instrument, computer control, digital machine tool, electronic weighing device, post and telecommunication, photocopier, refrigerator, microwave oven, electric fan, washing machine, electronic gaming machines.

  • Contact resistance of 500
  • Insulation resistance 100M
  • Key Operating Force 150-200N
  • Rebound time 1 (ms)
  • Life of 100 million (times)
  • Operating Temperature 60
  • 1.The electronic characteristics:
  • Circuit Rating: 35V (DC), 100mA, 1W
  • Contact resistance: 10Ω ~ 500Ω
  • (Varies according to the lead lengths and different from those of the material used)
  • Insulation resistance: 100MΩ 100V
  • Dielectric Strength: 250VRms (50 ~ 60Hz 1min)
  • Electric shock jitter: <5ms
  • Life span: tactile type: ≥ one million times
  • 2.The mechanical properties
  • Operating pressure: Touch feeling: 170 ~ 397g (6 ~ 14oz)
  • Switch travel: touch-type: 0.6 ~ 1.5mm
  • 3.The environment parameters
  • Operating temperature: -40 to +80
  • Storage temperature: -40 to +80
  • Temperature: from 40,90% to 95%, 240 hours
  • Vibration: 20G, max. (10 ~~ 200Hz, the Mil-SLD-202 M204.Condition B)
